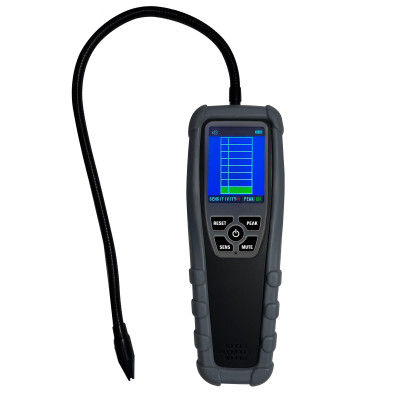

Mastercool Black Series Infrared Refrigerant Leak Detector (55600)

Mastercool Black Series Infrared Refrigerant leak detector (55600)

• Mastercool’s 55600 handheld infrared refrigerant leak detector uses an infrared sensor to effectively identify halogenated gases.
• The ergonomic design and rugged construction provides effortless refrigerant leak detection all while allowing the technician to easily adjust sensitivity to adapt to different environments.
• This superior IR (infrared) leak detector detects the refrigerant by scanning the area in a slow target scan mode.
• Moving the sensor back and forth until the alarm sounds; the IR sensor zeroes out when held over a leak.
• This unit provides the same trigger conditions for all refrigerants which is an advantage over other technologies that work better for some refrigerants than others.
• Packaged in a zippered carry case this kit includes the 55600 infrared refrigerant leak detector, charging cable and replacement filters.

FEATURES:

• Innovative infrared sensor offers an extended sensor life of 10 years
• Easily select high, medium and low sensitivity levels with a maximum sensitivity up to 0.14 oz/yr
• Advanced TFT screen provides clear and easy readings using color graphics that show leakage, sensitivity, battery level and sensor fault indicators
• Peak button indicates the maximum leak detected during measurements
• Auto-off function will automatically shut down the unit after 10 minutes
• Designed to meet EN14624, SAE1627, SAE2791 and SAE2913 standards

APPLICATIONS:

• Responds to all halogenated refrigerants including but not limited to:
  HFC’s (R134a, R410A, R407C, R417A, R404A, R507, R23, R508B, R152a, R32)
  HCFC’s (R22, R123, R124, R141b, R142b, R402A, R402B, R408, R409)
  CFC’s (R11, R12, R13, R500, R502, R503)
  PFC’s (PFC-14, PFC-116, PCF-218)
  HFO’s (R1234yf)
• Responds to blends such as R410A and R407
• Detects SF-6 in high voltage circuit breakers
• Detects halogen gases in fire-extinguishing systems

SPECIFICATIONS:

• Sensor: UV spectrum absorption
• Sensor life: 10 years
• Alarm mode: visual and audible
• Display: high resolution bright TFT active matrix LCD
• Automatic shutdown: 10 minutes without operation
• Operating temperature: -10 to 52?C (14 to 125.6?F)
• Operating relative humidity: 50% to 85% RH
• Storage temperature: -20 to 60?C (-4 to 140?F)
• Probe length: 14.37”
• Battery: 3.78V 3000mAh lithium battery (rechargeable) (6 hours of detection)
• Weight: 15 oz.
• Size: 7.8 x 3 x 1.5”
