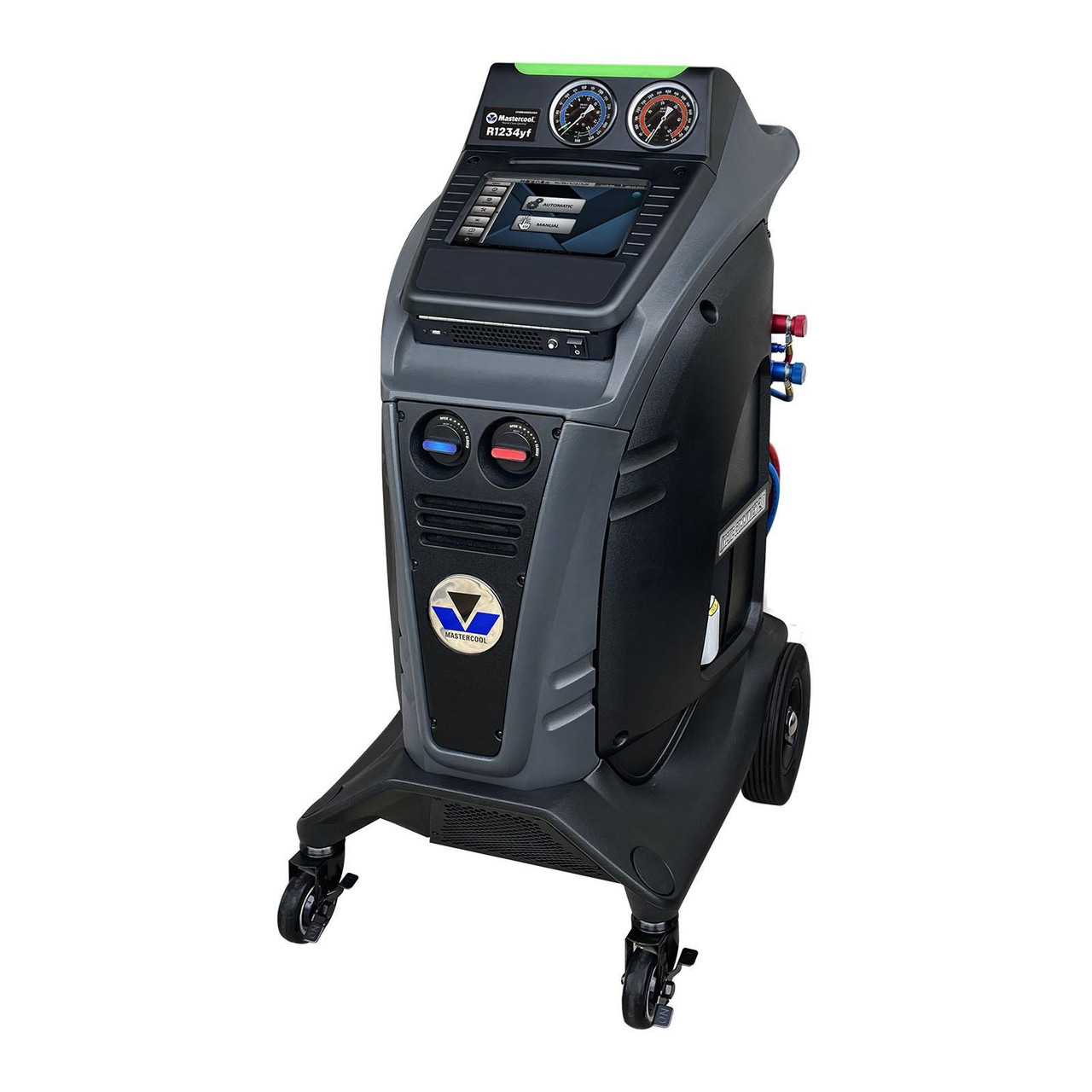

R1234yf and hybrid servicing through a 10-inch interface
The COMMANDER4100 brings dedicated R1234yf recovery, recycling and recharging to workshops servicing conventional and compatible hybrid vehicles. Its refrigerant identifier, hose flushing and touchscreen controls provide a coordinated service workflow with automatic and individual procedure options.
Features for your workshop
- An integrated identifier checks refrigerant before recovery.
- Hose flushing supports preparation for compatible hybrid systems.
- Electronic reporting capability supports service records.
- A refrigerant database, vacuum leak test and operating alerts assist technicians during service.
Technical specifications
| Specification | Details |
|---|---|
| Model | COMMANDER4100 |
| Refrigerant | R1234yf |
| Power supply | 110 V, 60 Hz |
| Touchscreen | 10 inches |
| Vacuum pump | 6 CFM |
| Cylinder capacity | 30 lb; refillable |
| Hose length | 96 inches |
| Charging accuracy | ±0.5 oz / ±15 g at 70–75°F |
Configuration and options
Automatic oil injection is not included on this 110 V version. Vehicle A/C system flushing is optional.
Choose the right machine for your vehicles
Check the vehicle refrigerant label, electrical supply and required accessories before ordering. For hybrid vehicles, follow the vehicle manufacturer’s oil requirements and the machine’s preparation procedures. Contact our team if you need help confirming suitability for a particular vehicle or service task.
